DNS Server Setting

  1. Method to switch the DNS server settings.

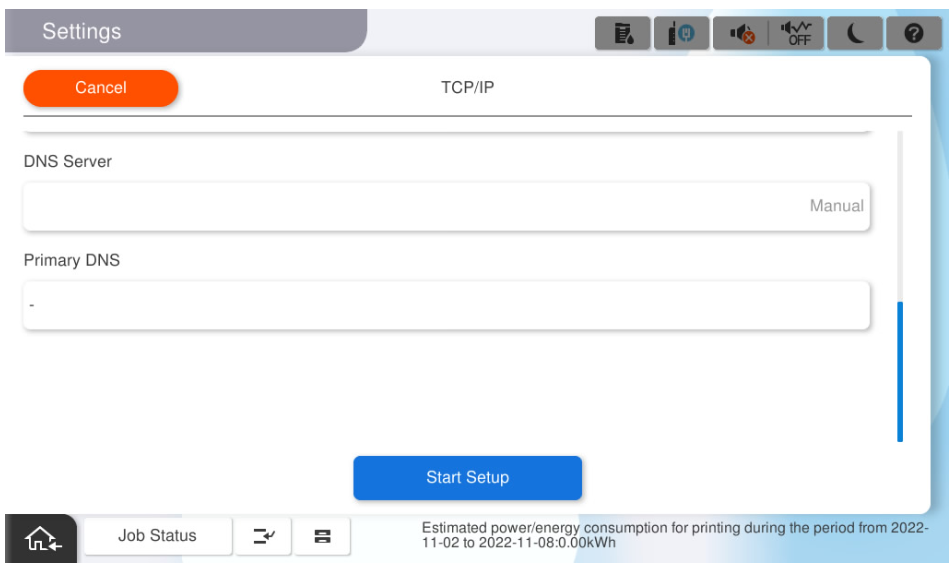

    1. If the DNS server setting is [Auto], tap [Auto].

    2. Check that the DNS server setting is set to [Manual].

      Check Point / チェックポイント

      When entering the IP address of the primary DNS, make sure to enter 0 to match the number of digits. When returning from the software keyboard screen, the 0 entered to match the digits are omitted on the display.

      • When the IP address is “192.0.2.111”
        192.000.002.111
      • When the IP address is “192.0.12.10”
        192.000.012.010
  2. Primary DNS settings
    1. Tap [IP address] of the primary DNS.

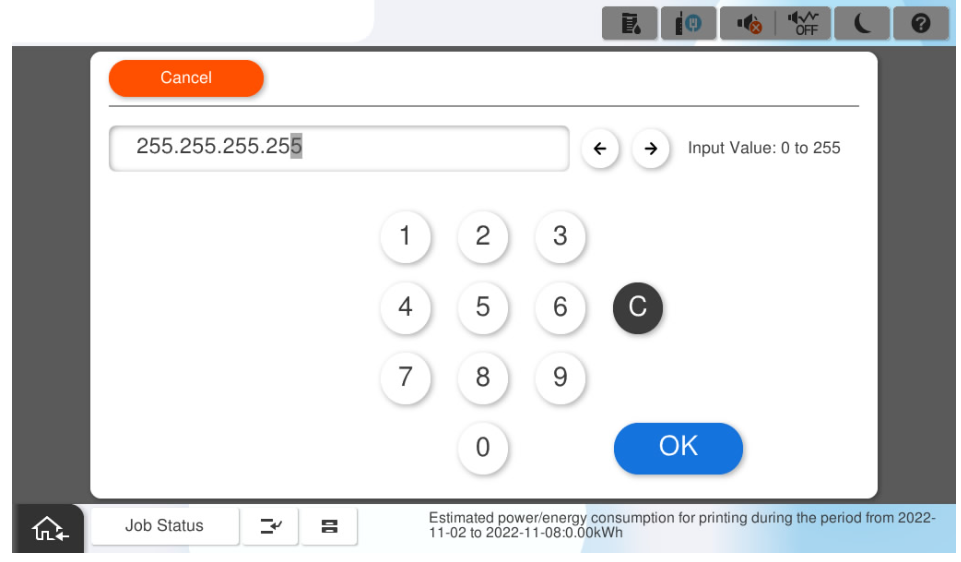

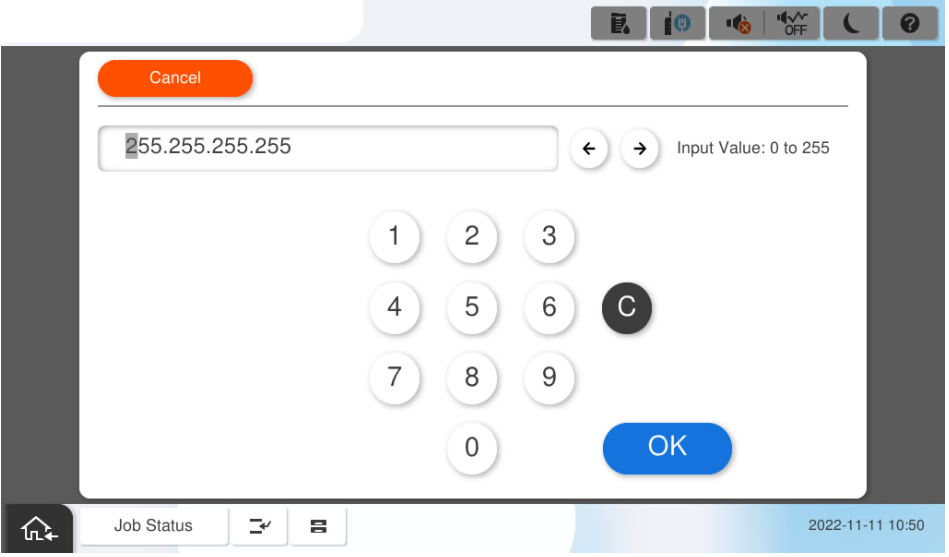

    2. When the software keyboard starts up, enter the primary DNS IP address based on the hearing sheet.

      Check Point / チェックポイント

      When entering the IP address of the primary DNS, make sure to enter 0 to match the number of digits. When returning from the software keyboard screen, the 0 entered to match the digits are omitted on the display.

      • When the IP address is “192.0.2.111”
        192.000.002.111
      • When the IP address is “192.0.12.10”
        192.000.012.010
    3. When the entry is completed, select [OK].


  3. Save the settings.
    1. Select [Start Setup].
    2. Wait for the settings to take effect.
    3. Confirm that the setting completion screen is displayed.
