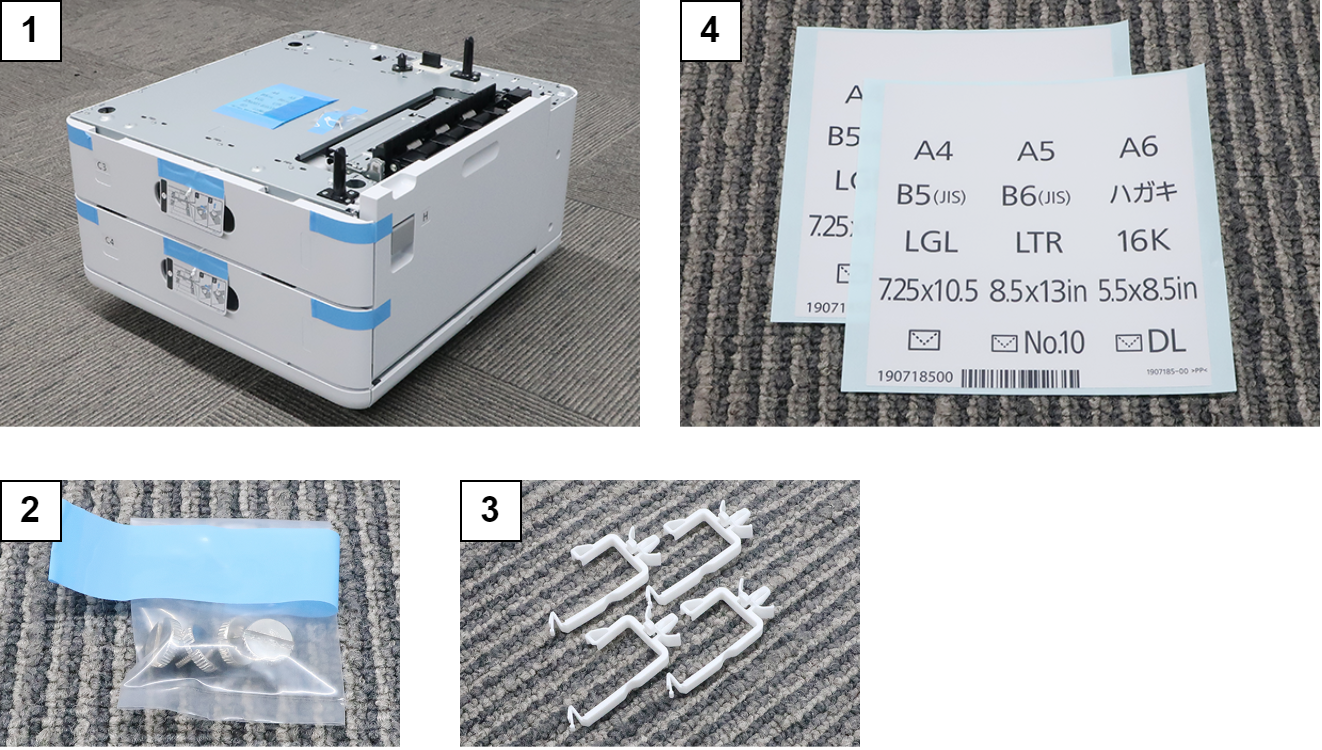

C3C4 Additional Cassette Unit Bundled Items and Unpacking Procedure

Minimum number of workers

1 person

Caution / 注意

Be sure to check the following precautions before unpacking.

All workers must read the unpacking procedure together before starting work.
Wear easy-to-move clothing, gloves and safety shoes and work with care for injuries etc.
Work with sufficient working space.
Work in the position with less load, and stop working immediately as you feel that the workload is too large.

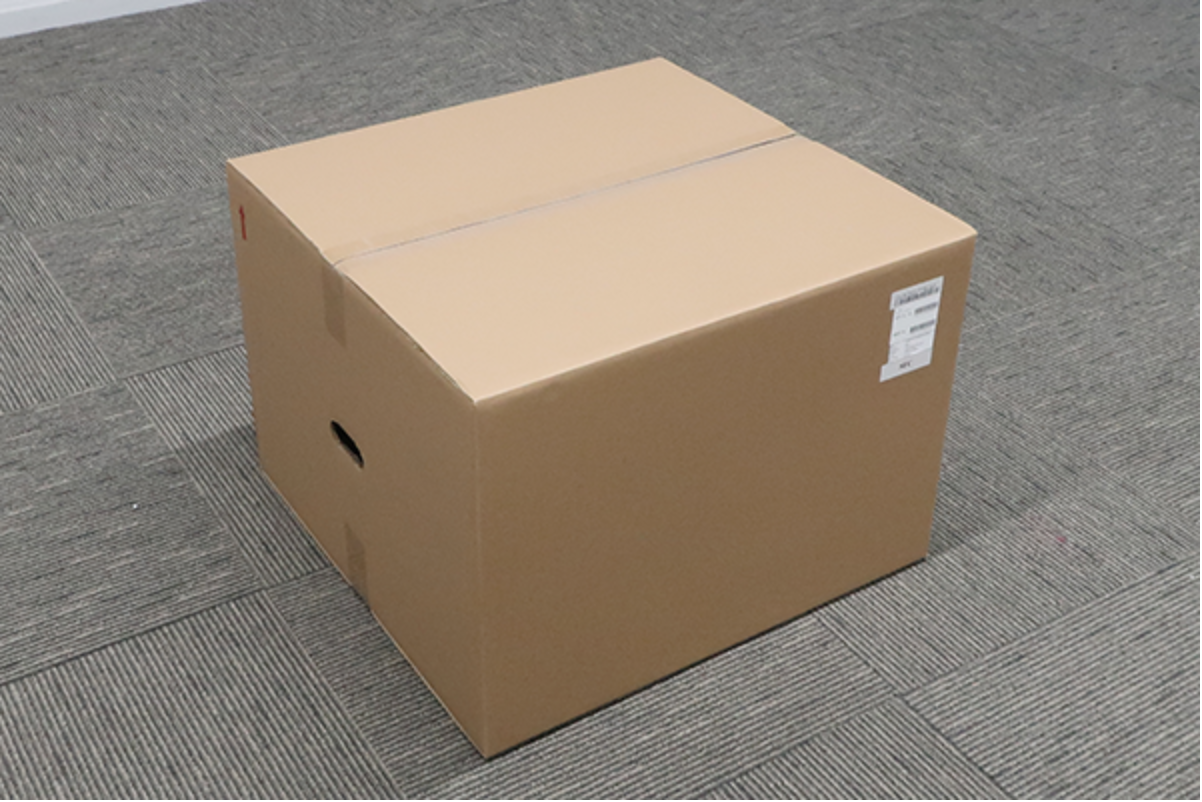

Remove the tape and open the top cover.

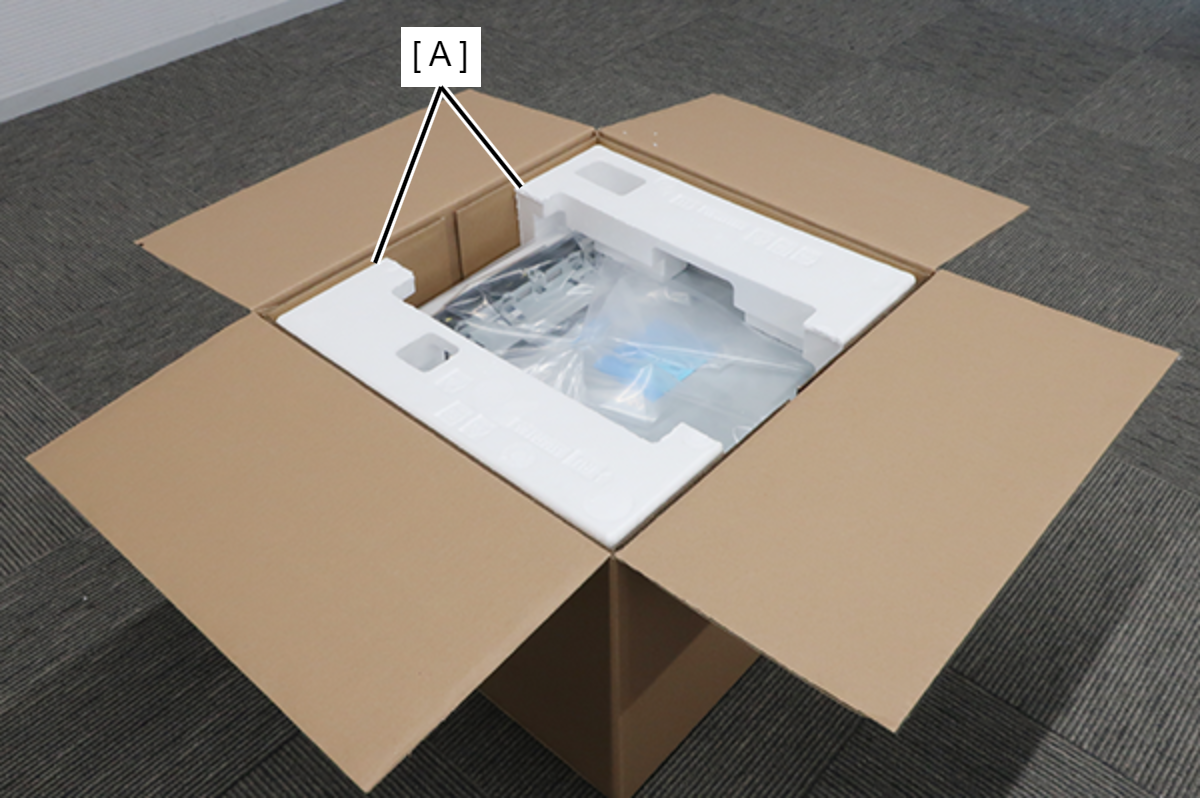

Remove the 2 cushioning materials (A) on the top.

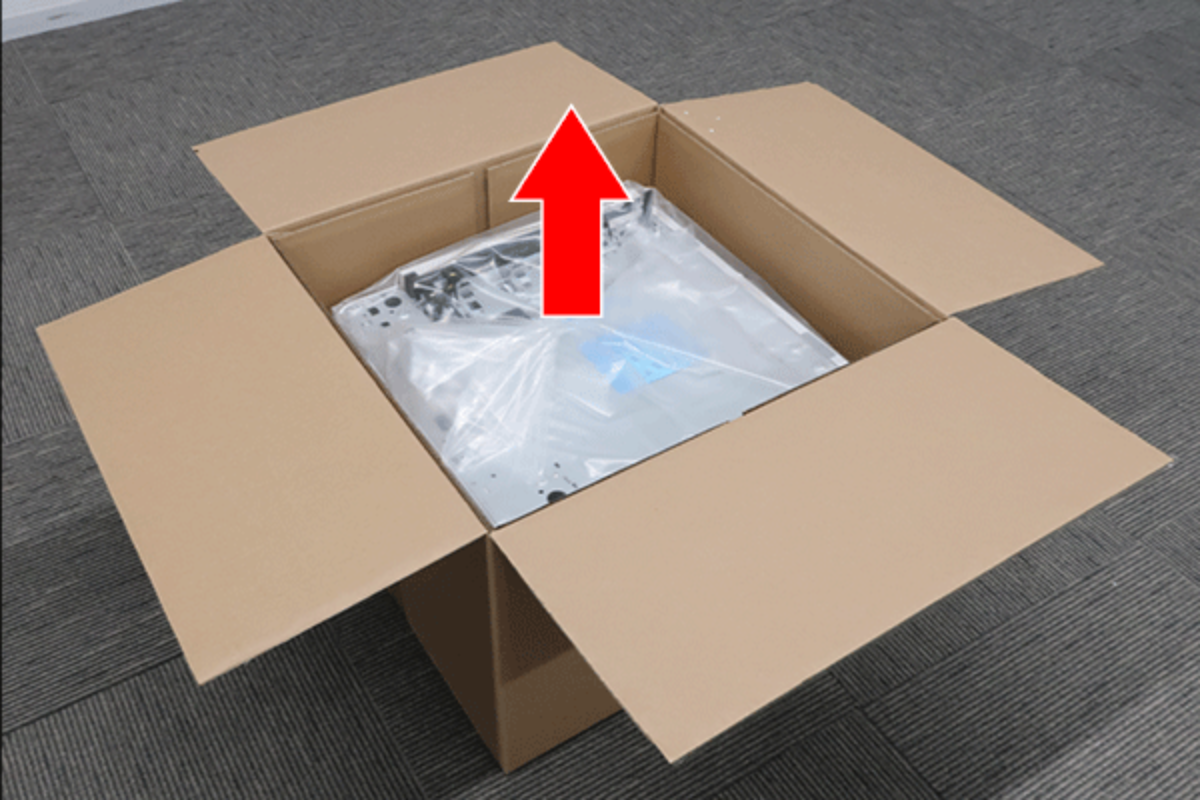

Lift the main unit and remove it from the packing box.

Caution / 注意
Plastic bags do not have handles, so when removing them, be careful not to tear the vinyl.

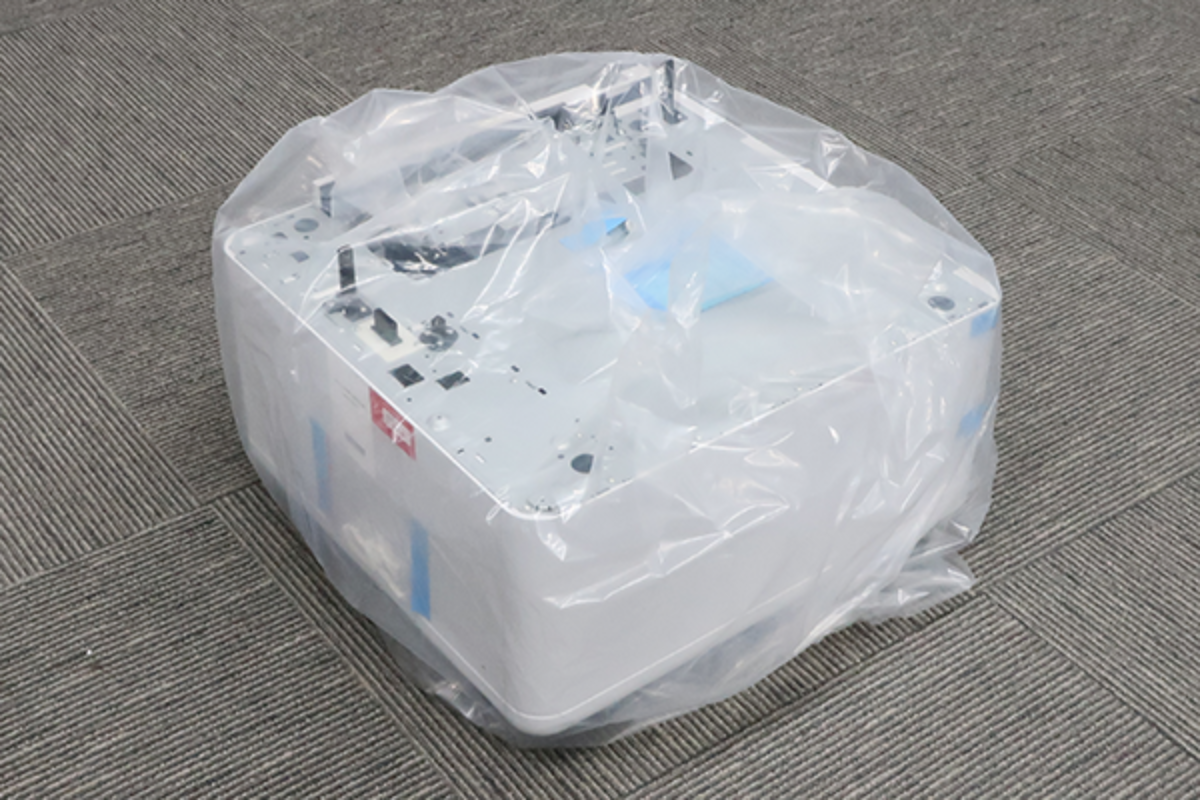

Remove the plastic bag.

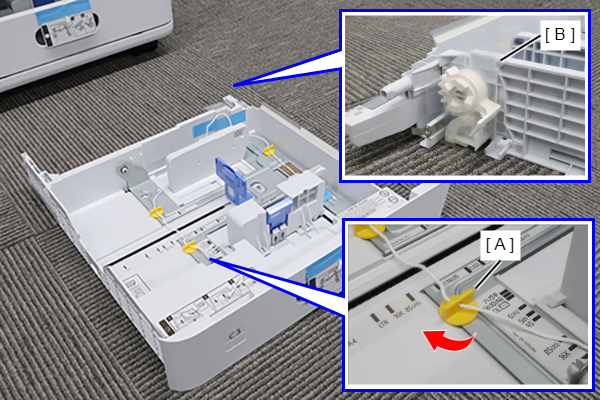

Pull out the cassette, then remove the protective tape. hopper protection material (A), and gear protection sheet (B).

Caution / 注意
Discard the hopper protect parts and gear protect sheet after unpacking.
