Product Summary

The AM-C400/550 is a line inkjet MFP that can accommodate up to A4 size paper.

It is based on the AM-C4000 series engine, delivering a compact size thanks to modifications to the layout of the main unit structure.

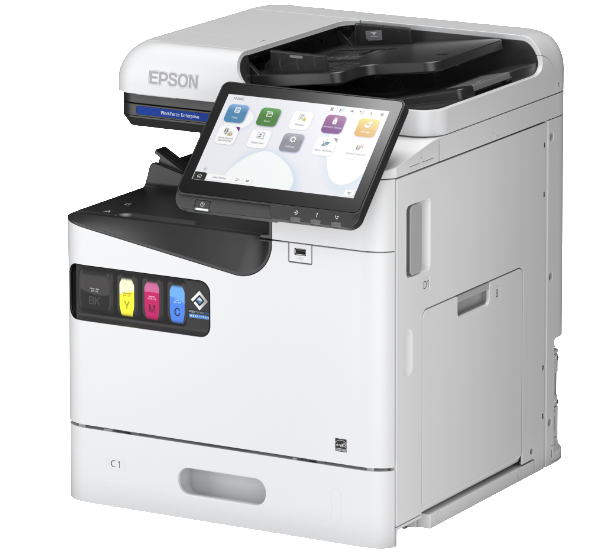

Main unit

Printing speed: 40 ppm

Maximum supported paper size: A4/Legal

Main unit size when stored (WDH): 465 × 517 × 570 (mm)

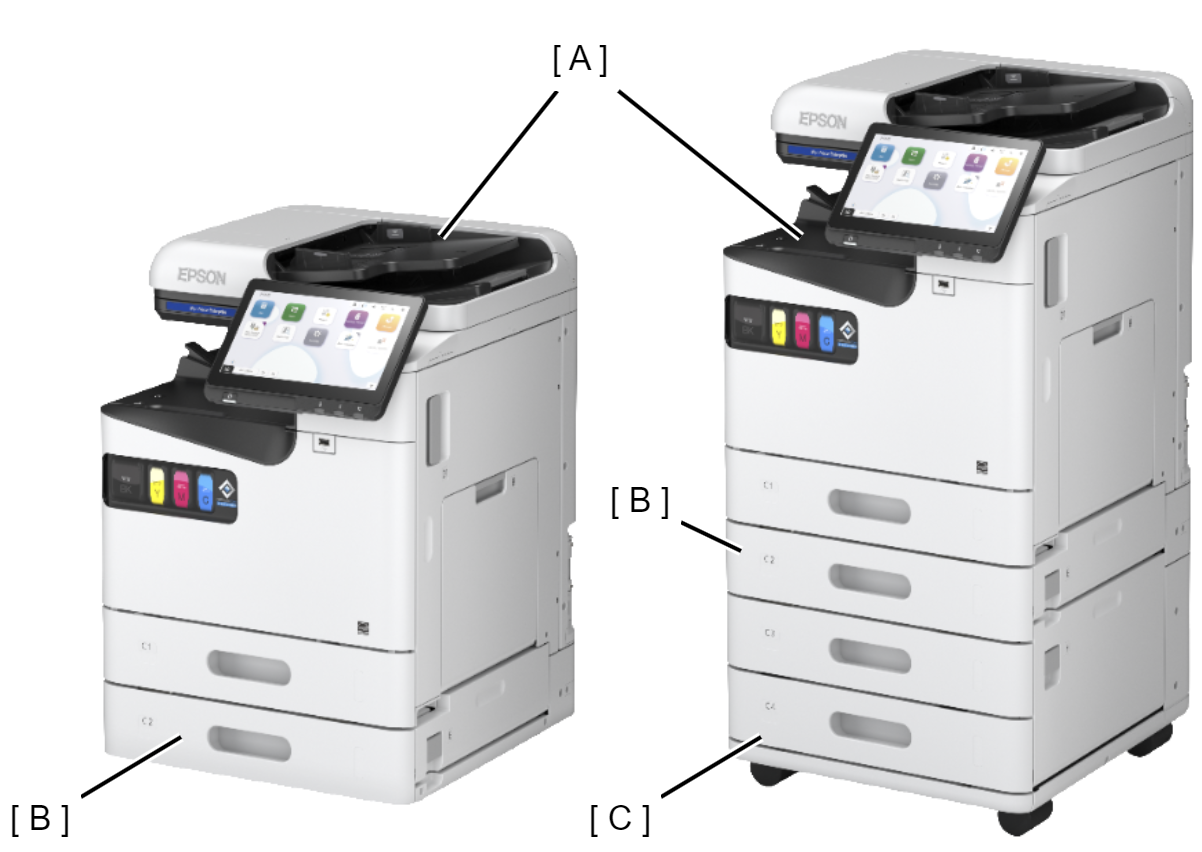

Product configuration: options

(A) Main unit

(B) Additional 1st Cassette Unit P1

(B) Additional 2nd Cassette Unit P2

Other options
  • Extension G3 Fax Board
  • Wireless LAN unit
  • OCR option
  • Authentication device stand
  • Paper Cassette Lock-P1
  • Option CD
Service Support Mode

Just as on the LM-C4000 series, it is equipped with Service Support Mode, which features menus, etc., using a GUI.

A parts replacement menu, which covers the steps necessary before and after replacing parts, and an information display, makes controls easy even for operators with minimal experience.

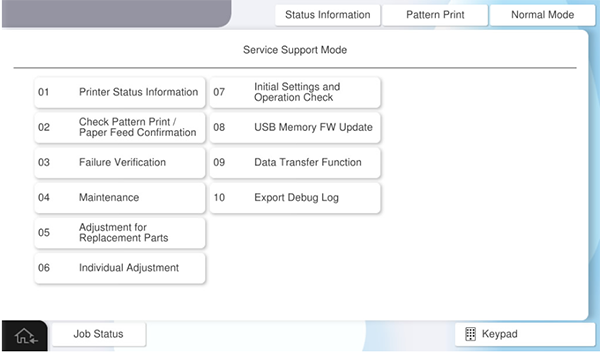

  • Top page

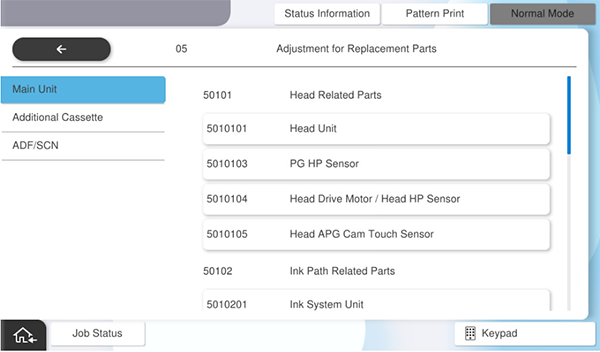

  • Parts replacement menu

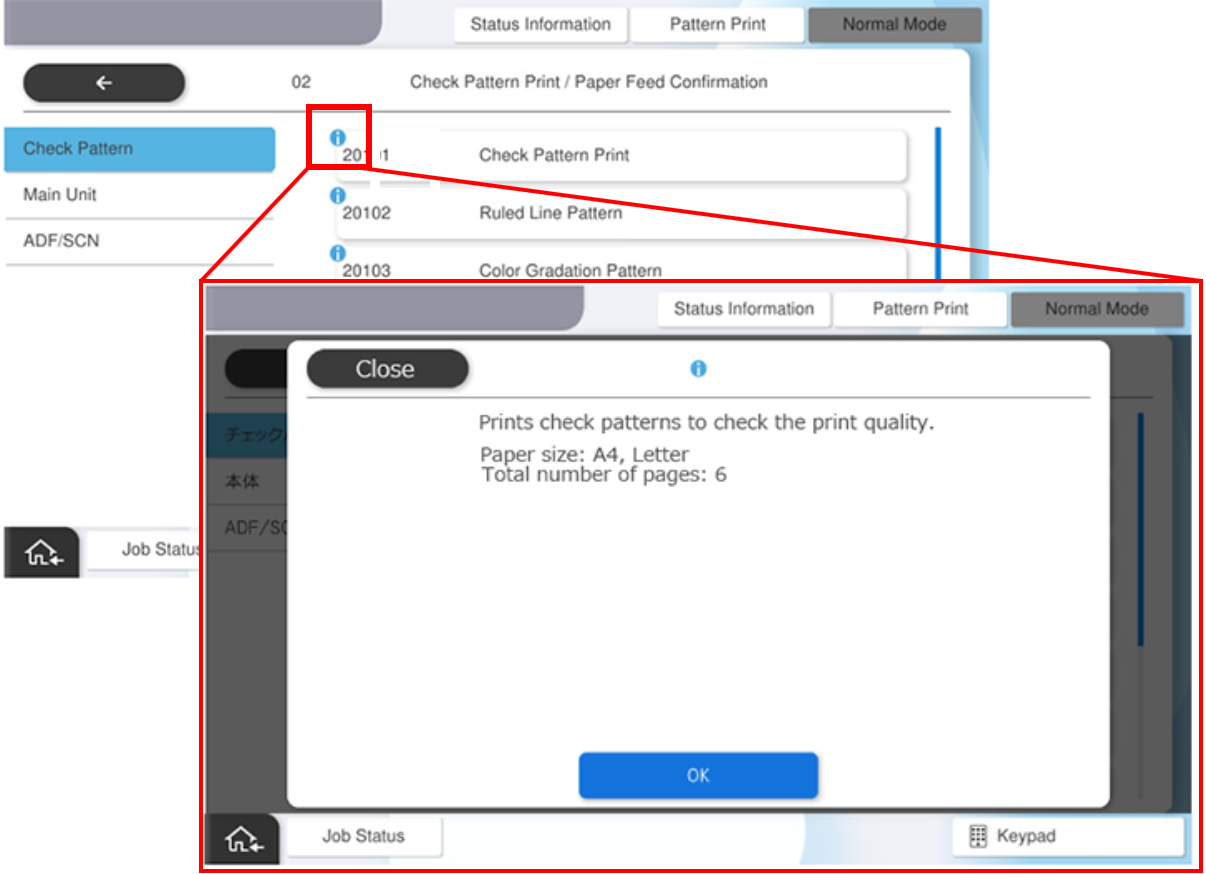

  • Information display
