Fax Settings

Check Point / チェックポイント

  • Perform the setting after completing the following work.

    • Fax function activation.(105 Option FAX Port Setting)

    • Firmware Update (Firmware Update)
      *Note the firmware will not be applied to the additional G3 fax board until after the fax function has been activated.

  • Make sure the fax function is enabled and ready for use before starting the setting work.
    • G3-1 (LINE1) Confirmation Procedure

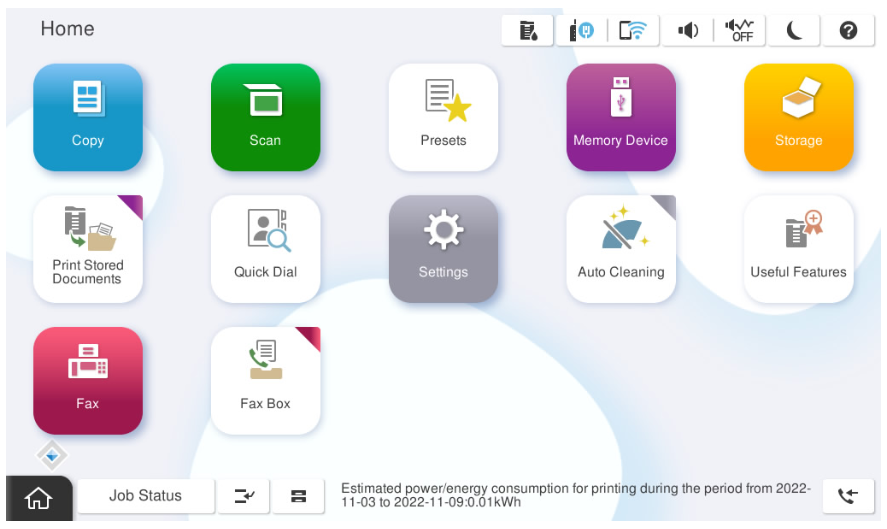

      • "Fax" icon is displayed on the home screen.

    • G3-2 (LINE2) and G3-3 (LINE3) Confirmation Procedure

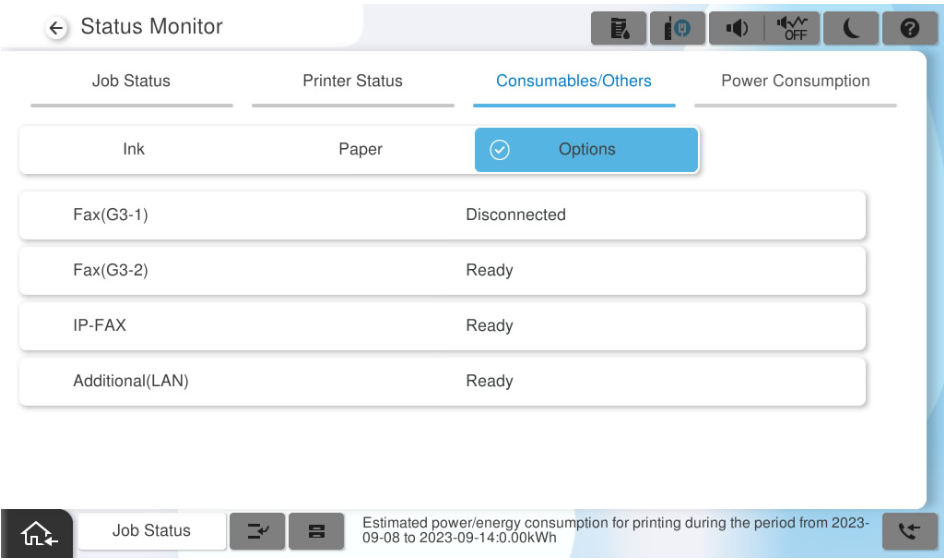

      • Tap [Job/Status] > [Consumables/Others] > [Additional] on the home screen, and confirm the status of the additional G3 fax board is displayed as "Waiting".
        *The figure below shows the state of G3-1 (LINE1) only.

      • It will be displayed as "unusable" if the firmware is not updated.


Setting Method

Port 1 settings: [Setting][General Settings][Fax Settings][Basic Settings (Ch1)]

Port 2 and 3 settings: [Setting][General Settings][Fax Settings][Basic Settings][Extension Line Settings][G3-2] or [G3-3]

Note / 補足
  • The fax setting wizard works only for Ch1.
  • The Fax function diagnosis works only for Ch1.
List of the Basic Fax Settings

Default Value

G3-1 (LINE1)

G3-2 (LINE2)

G3-3 (LINE3)

Remarks　

[Fax Settings]

> [Basic settings]

[Fax Settings]

> [Extension line setting G3-2]

[Fax Settings]

> [Extension line setting G3-3]

Communication mode

33.6 kbps (Super G3)

33.6 kbps (Super G3)

14.4 kbps (G3)

9.6 kbps (G3)

For an optical line,  "33.6 kbps (Super G3)" may cause a communication error.

Error correction (ECM)

ON

OFF

ON

Normally used with “ON”.

Dial tone detection

OFF

OFF

ON

Set according to phone line type or services.

Dial type

Push

Push

Dial (20 PPS)

Dial (10 PPS)


Number display support

OFF

OFF

ON

External phone priority

OFF

ON


Connected lines

PSTN

General line (PSTN)

Private branch exchange (PBX)


Source name

Registering a sender name

Registering a sender name

In the case of a representative number, register the same representative number in G3-1 to 3.

For multiple fax aggregation, register the telephone number of each line.

Source name

Registering a sender name

Registering a sender name

Common use for G3-1 to 3.

Receive mode

Auto

Auto

Automatic fax telephone switching

Manual

Auto

G3-2,3 are fixed to "automatic".

External phones can only be connected to G3-1 port.

For G3-2 and G3-3, there is no “Automatic fax telephone switching” and “Manual” Mode when using an external phone.

Number of calls

1

0 to 15

All "1" in the case of the representative set of the subscribed telephone line.

In case of optical line / ISDN, change according to the incoming call priority.

Number of phone calls

8

3 to 15

-

G3-2 and -3 do not work because of the function using an external telephone.

Remote reception

OFF

OFF

ON

-

G3-2 and -3 do not work because of the function using an external telephone.

Call rejection

OFF

OFF

ON

Common use for G3-1 to 3.

Fax Rejection

OFF

OFF

ON

Common use for G3-1 to 3.

Receive paper width

Auto

Auto

A3

B4

A4

Common use for G3-1 to 3.

File format for saving / transferring

PDF

PDF

TIFF

Common use for G3-1 to 3.

Communication settings for each line

Send / Receive

Send / Receive

Send only

Receive only

Normally, it is used for both transmission and reception.

Select "Receive Only" for the port that you want to use to receive only without sending.

The port that you want to use only for transmission without receiving is set on the line side.
