Inner Punch Unit Bundled Items and Unpacking Procedure

Bundled Items

No.

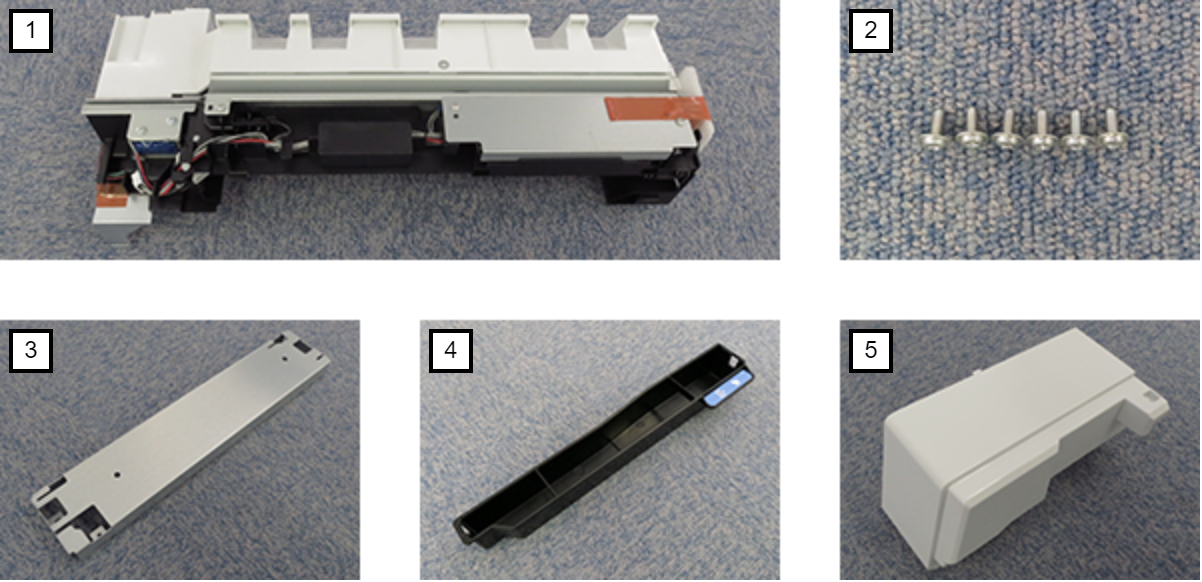

Bundled Items

Qty.

1Inner Punch Unit1

2

Screw M3 × 8

6

3

Base frame

1

4Punch waste tray1
5Inner front cover1
Unpacking Procedure
Items to Prepare
  • Gloves
  • Cutter
Minimum number of workers

1 person

Caution / 注意

Be sure to check the following precautions before unpacking.

  • All workers must read the unpacking procedure together before starting the work.
  • Wear easy-to-move clothing, gloves and safety shoes and work with care for injuries etc.
  • Work with sufficient working space.
  • Work in a posture that does not easily apply a load on your body, and stop work immediately if you feel that the load is too large during the work.
Unpacking Procedure
  1. Remove the protective tape and open the top lid.

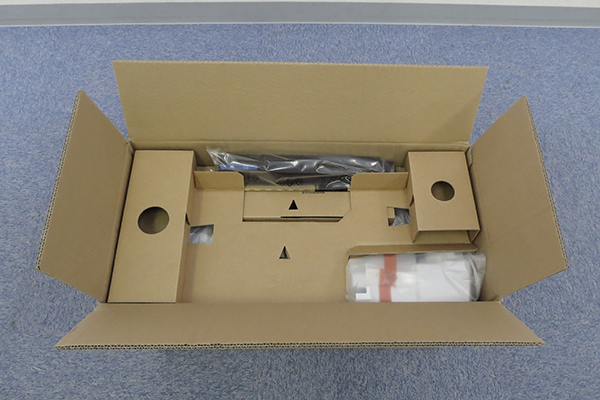

  2. Take out the bundled items.

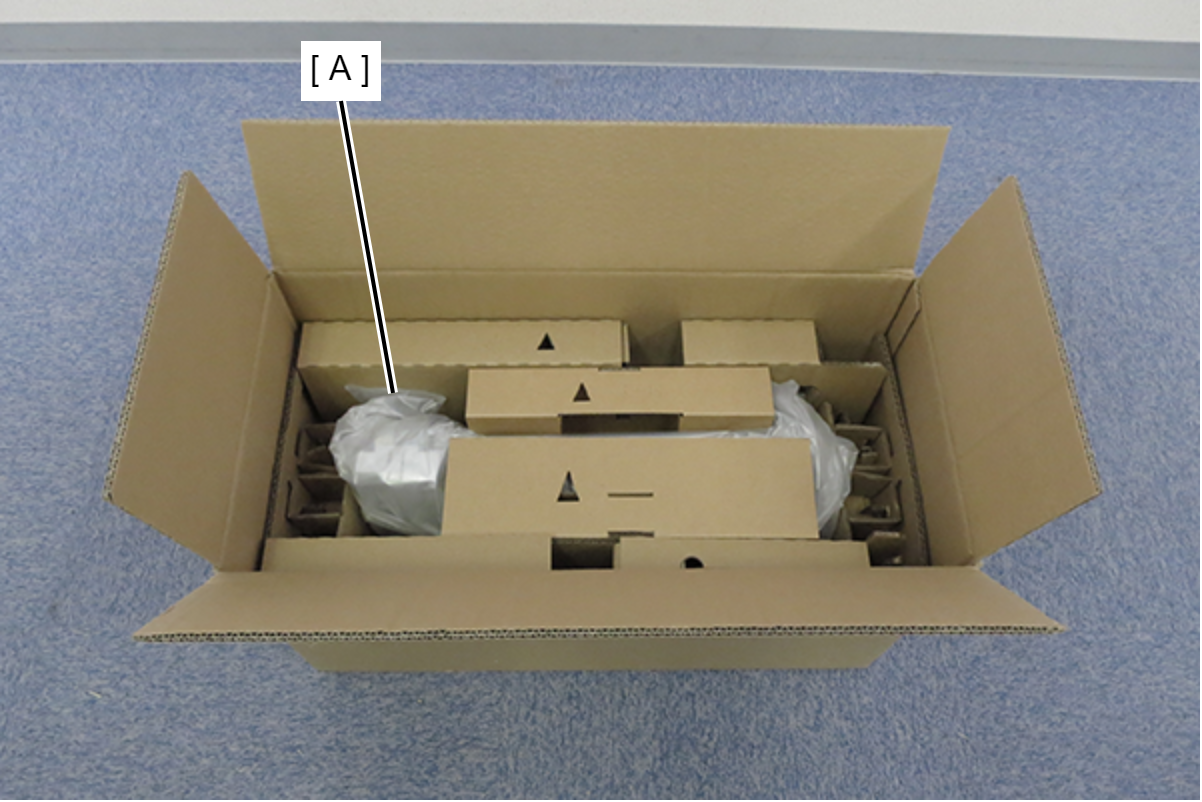

  3. Take out the inner punch unit (A) together with the packing material.

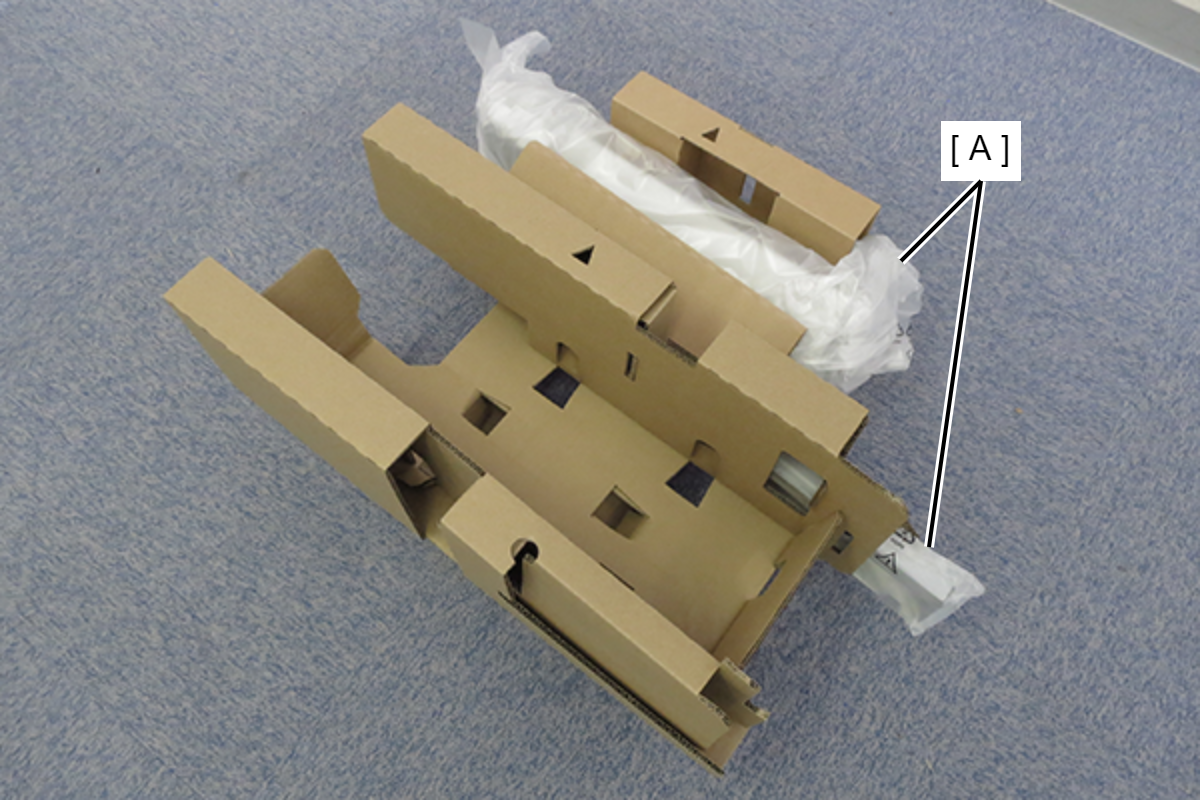

  4. Take out the bundled items (A) from the packing material that was taken out at the same time.

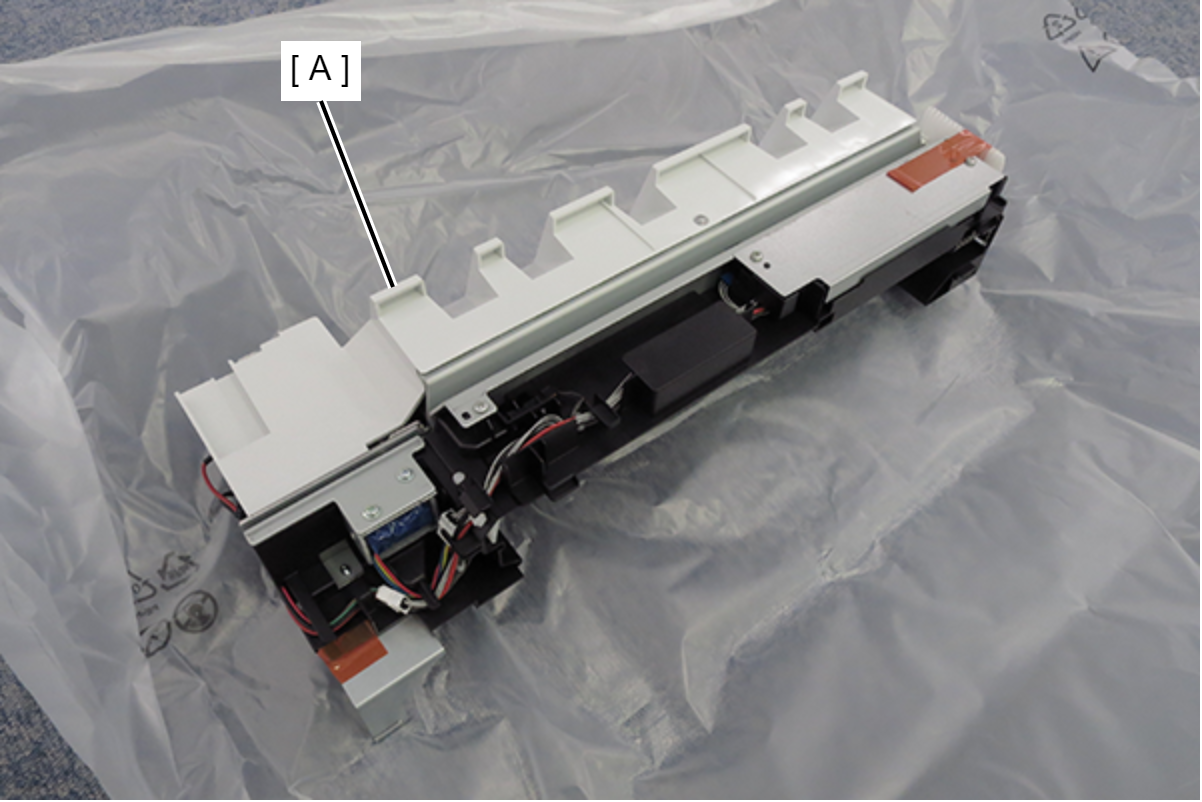

  5. Remove the inner punch unit (A) from the vinyl sheet.

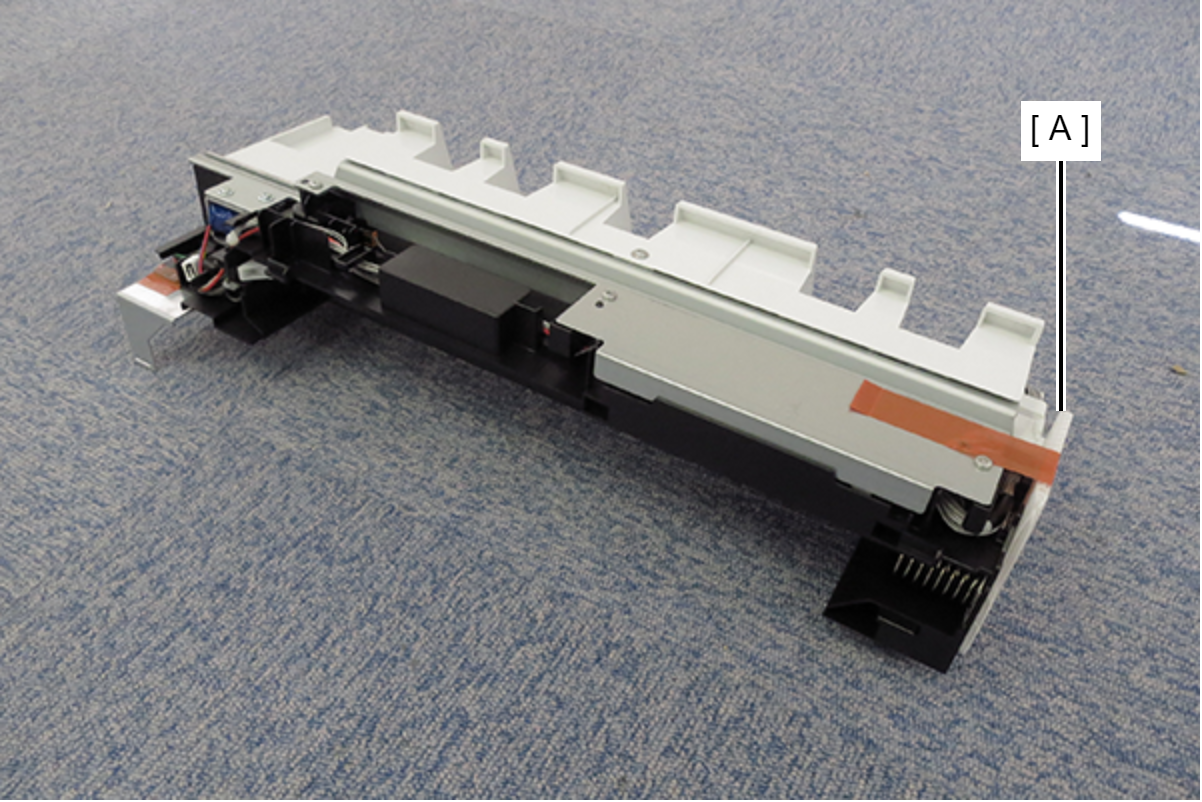

  6. Peel off the 2 protective tapes and remove the protective material (A).
