Stabilizers Installation Procedure

Bundled Items

No.Bundled ItemsQty.

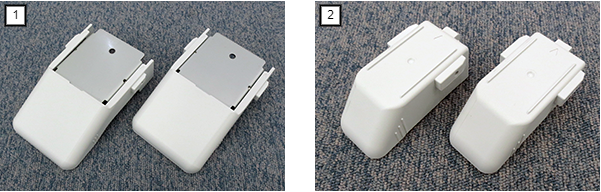

1Stabilizers A2
2Stabilizers B2


Installation Procedure
Items to Prepare
  • Gloves
Minimum number of workers

1 person

Caution / 注意

Be sure to check the following precautions before installation.

  • All workers must read the installing procedure together before starting work.
  • Wear easy-to-move clothing, gloves and safety shoes and work with care for injuries etc.
  • Work with sufficient working space.
  • Work in the position with less load, and stop working immediately as you feel that the workload is too large.
  • All work must be done with the power off.
Check Point / チェックポイント
  • When installing a High Capacity Unit, the Stabilizer cannot be installed on the right side of the product.
  • When installing a Floor Finisher, the Stabilizer cannot be installed on the left side of the product.
Installation Procedure

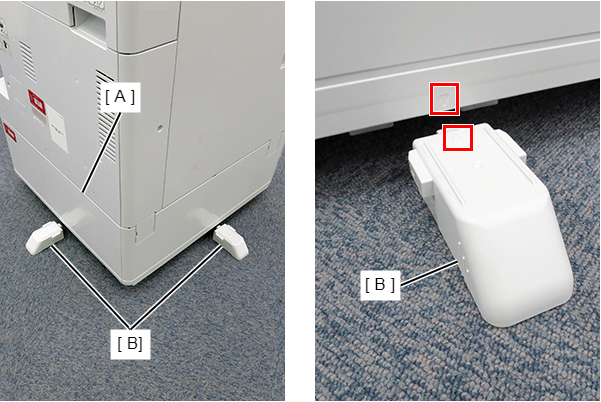

  1. Align the arrow marks on the stabilizer A (B) with the arrow marks on the front and bottom right sides of the additional cassette (A).

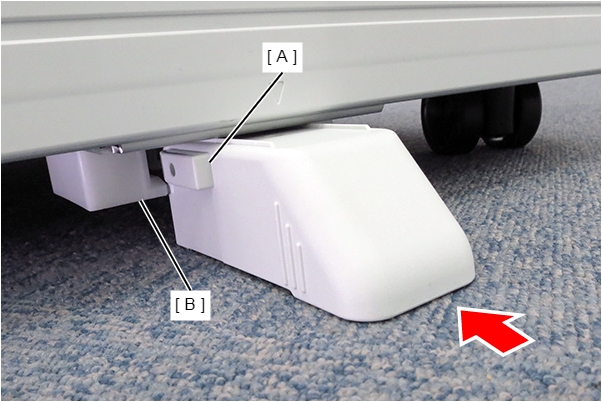

  2. Push the tab (A) of  stabilizer A all the way along the guide (B) at the bottom of the additional cassette.
  3. Align the arrow marks on the stabilizer B (B) with the arrow marks on the back and left bottom of the additional cassette (A).

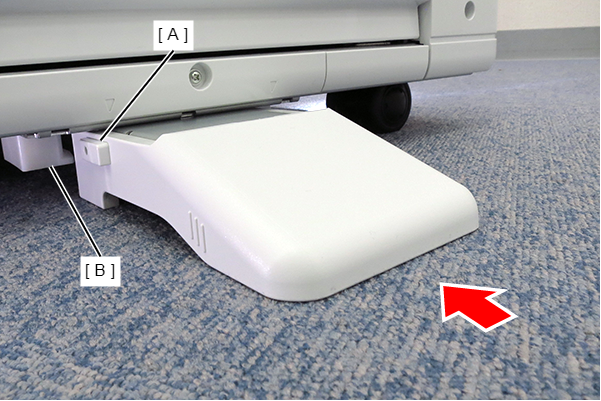

  4. Push the tab (A) of stabilizer B all the way along the guide (B) at the bottom of the additional cassette.
