# 2010302 Manually Release (Head unit UP)

Overview

Change the position of the head unit (upper) so that the head transport parts are not locked.

Check Point / チェックポイント

Execute this menu only when the head transport parts are locked. If executed in any other case, a fatal error may occur. This menu should be used when the locked state cannot be cleared even after performing Manually Release (Head unit DOWN).

Step

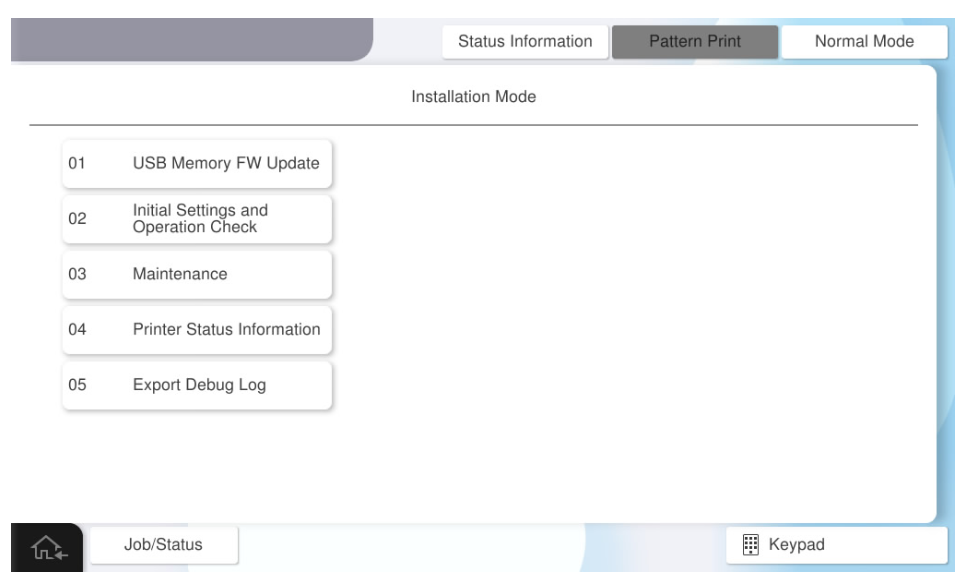

1. Start the installation mode.
   Head and cap transport parts cannot come off
2. Select [02 Initial Setting and Operation Check].

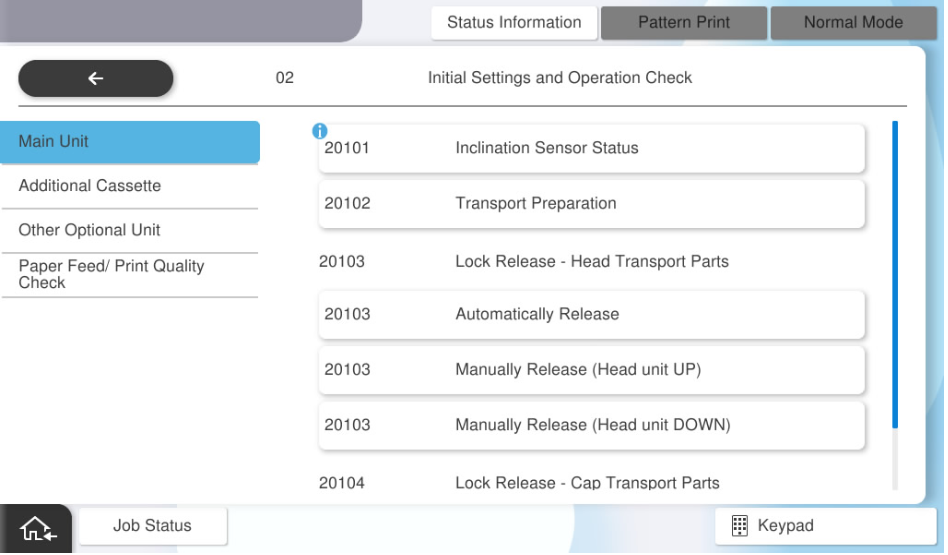

3. Select [2010302 Manually Release (Head unit UP)].

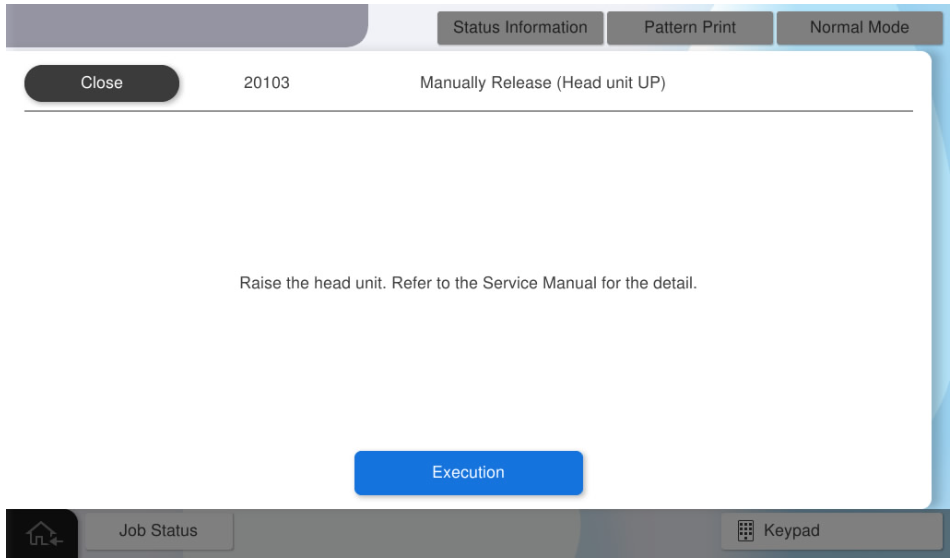

4. Press [Execution].

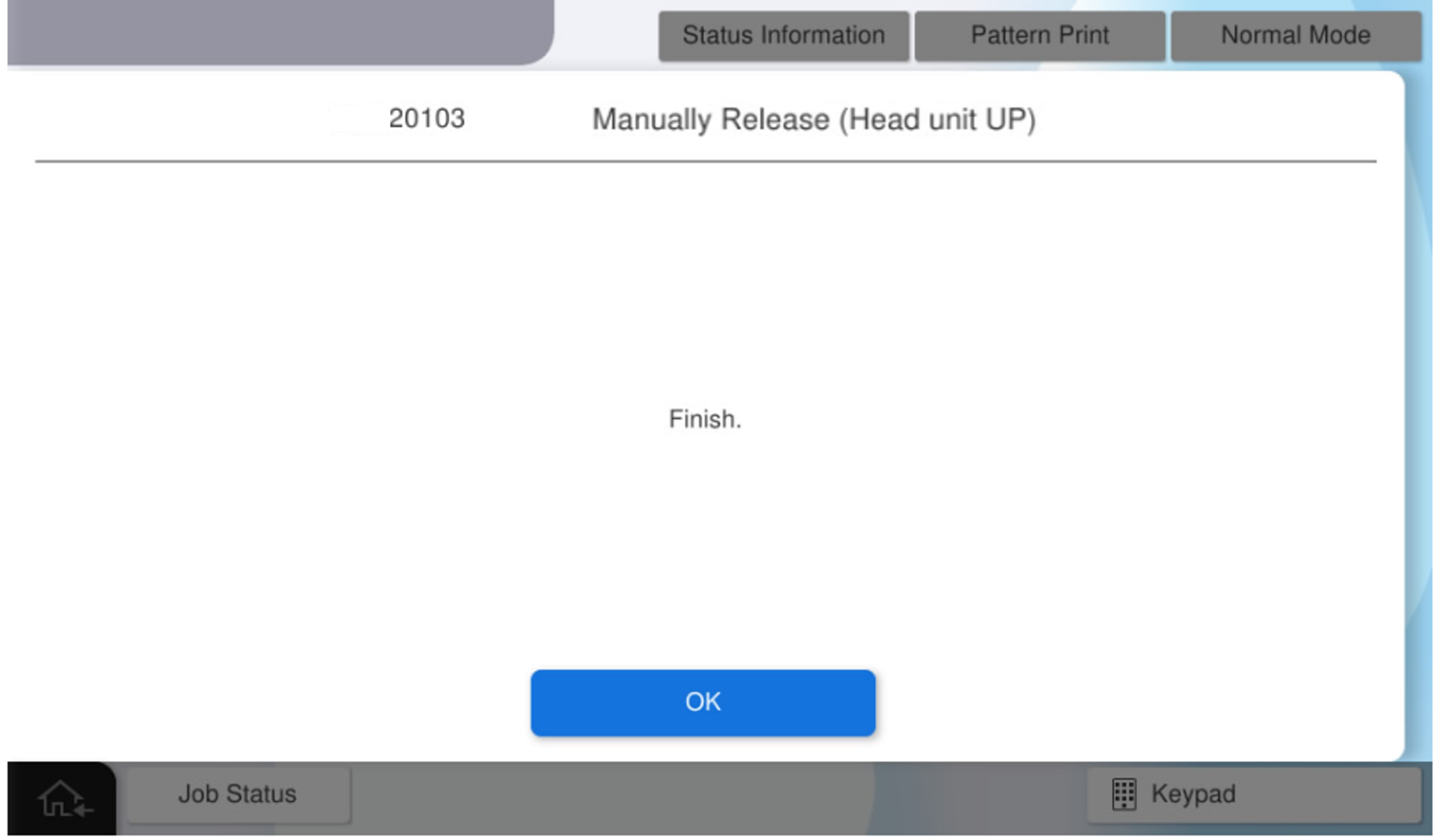

5. Press [OK].


6. Turn off the power and try to remove the head transport parts.
   if the lock state could not be cleared, refer to "Head and cap transport parts cannot come offf".

   Note / 補足

   Head Transportation Parts Open the front cover, hold the handle of the transport parts, and pull it forward while rocking it left and right.
