20801 Staple Stack (Rear 1 position)

Performs stapling processing (1 point at the rear) and discharges the paper to finisher tray.

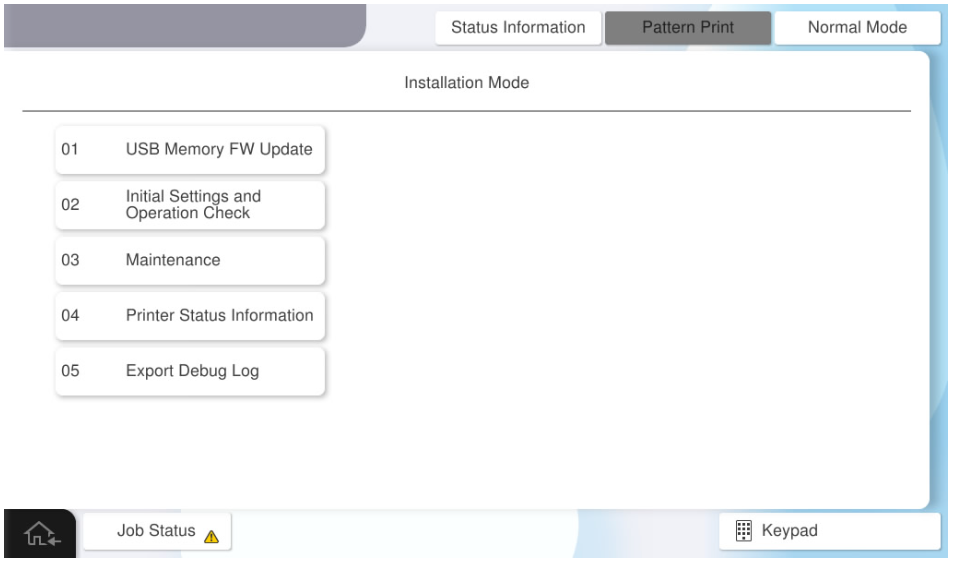

  1. Start the installation mode.
  2. Select [02 Initial Settings and Operation Check].
  3. Select the [Operation Check (Floor FIN)] tab.
  4. Select [20801 Staple Stack (rear 1 position)].

  5. Press each setting item button to make the print settings.
    The parameters that can be set are as follows.

    Setting Items

    Choice

    Feed TrayC1, C2, C3, C4, MP Tray
    Output TrayFinisher Lower Tray
    Number of sheets2 - 50 sheets
    Check Point / チェックポイント
    • Up to 30 sheets of A3 size paper can be fed. Even entering 30 or more for the number of feed, only 30 sheets are fed.
  6. Press [Execution] after completing the settings.
