# Operation Check

After completing the installation and setting of the product, check the paper feeding and print quality.
Also, since the items to be implemented vary depending on the option configuration, check the corresponding items by referring to the following instructions.

#Paper feed confirmation

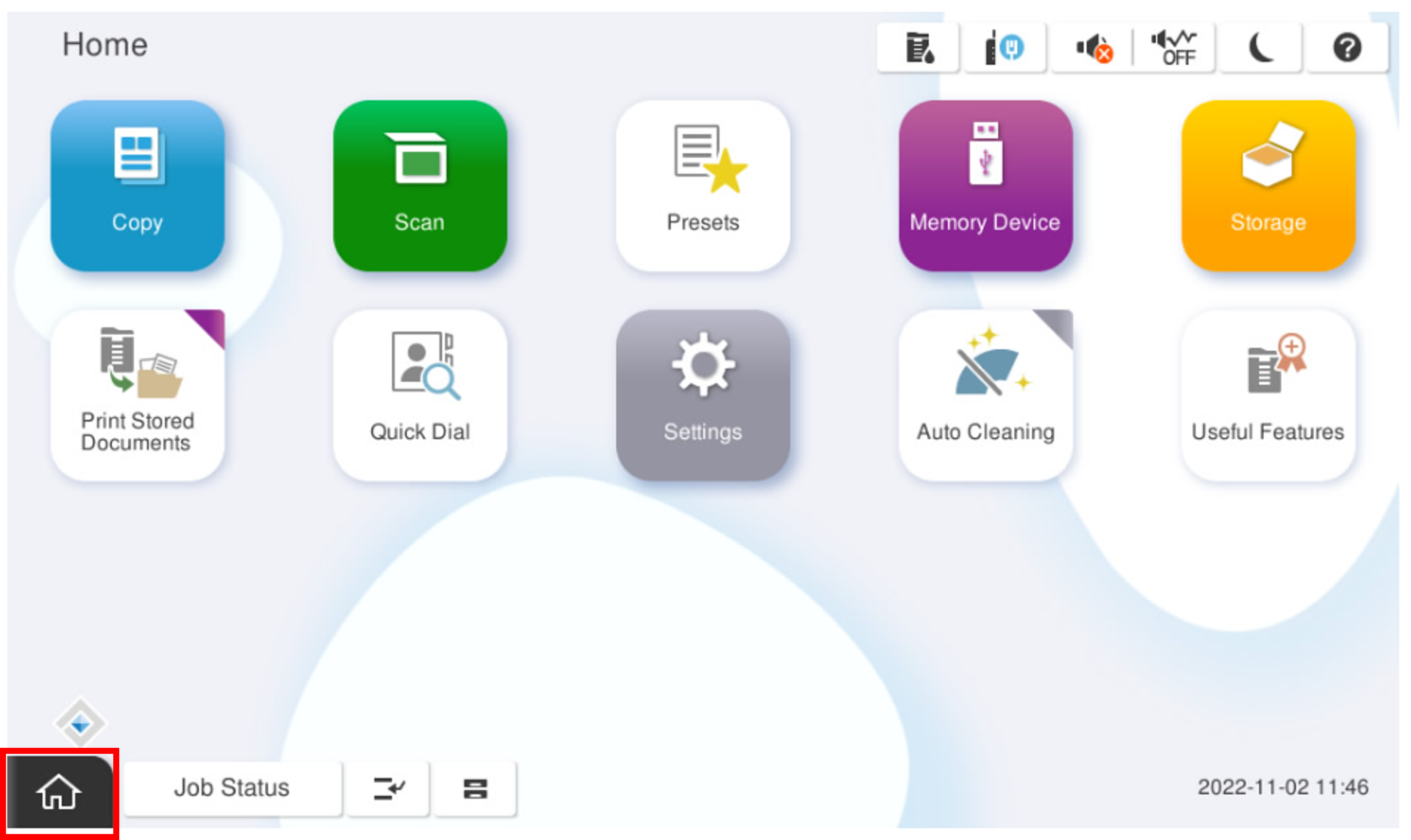

1. Start the installation mode.

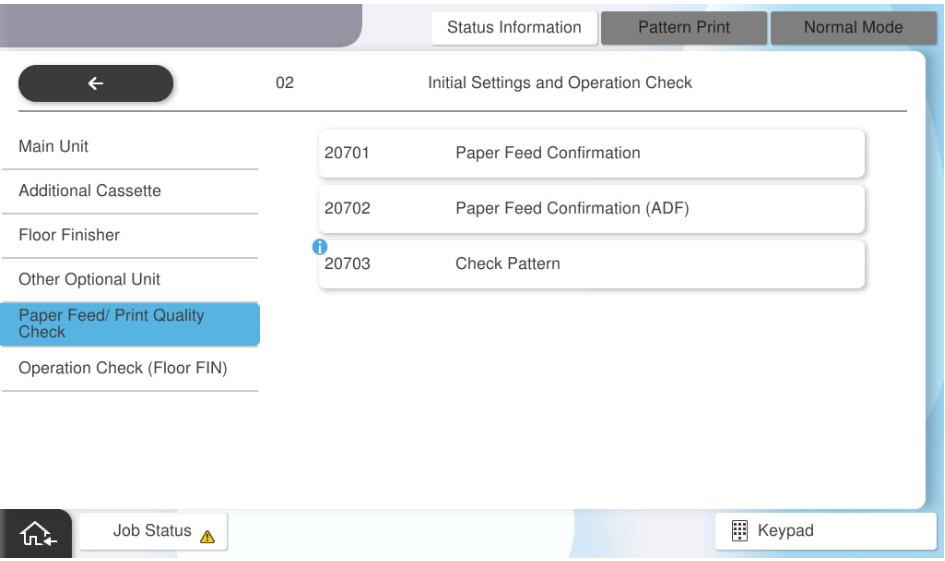

2. Select [02 Installation Setting / Operation Check].


3. Select the [Paper Feed/ Print Quality Check] tab.


4. Select [Paper Feed Confirmation].

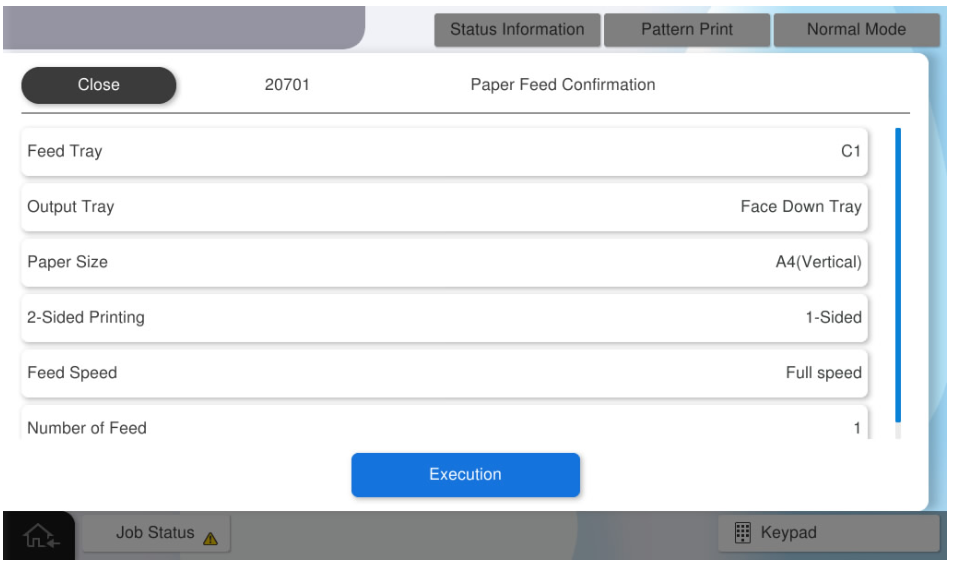

5. From the menu below, select the setting for which you want to check the paper feeding, and press [Execute].




   Menu	Setting Items
   Feed Tray	C1, C2, C3, C4, MP Tray, High Capacity Tray
   Output tray	Face Down Tray, Inner tray
   Paper Size	A4 (Vertical), Letter (Vertical), A3, Ledger
   2-Sided setting	1-sided, 2-sided
   Feed Speed	Full speed, low speed
   Number of Feed	1 to 100

6. Confirm the feed and press [Execution].

7. Select [Paper Feed Confirmation (ADF)].


8. Load paper in the ADF tray and select [Execute].



9. After confirming the paper feed, select [End].



#Print quality confirmation

Check Point / チェックポイント

Be sure to check that there is no problem with the amount of side registration margin from each paper tray(MP tray, C1-C4, High Capacity Tray*). *Only if installed

1. Start the installation mode.

2. Select [02 Installation Setting / Operation Check].


3. Select the [Paper Feed/ Print Quality Check] tab.

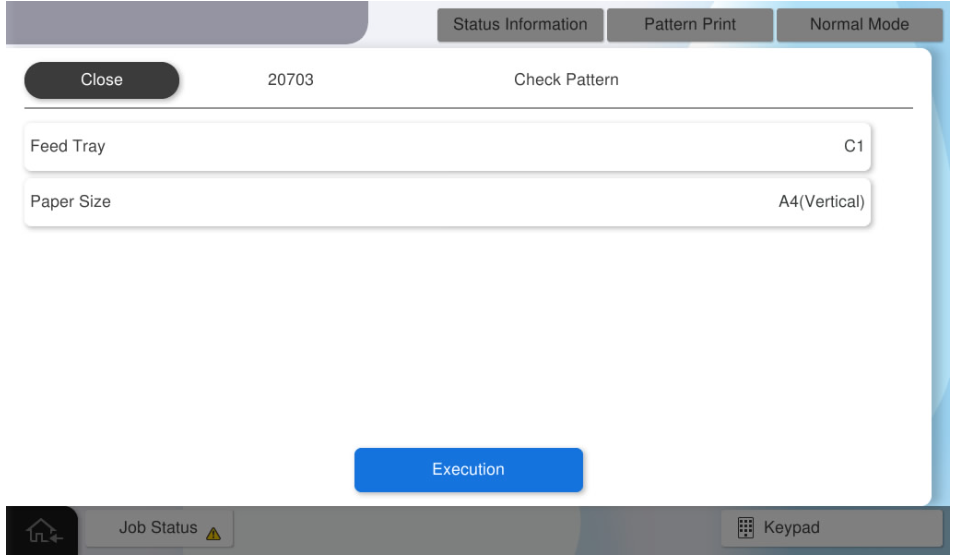

4. Select [20703 Check Pattern Print].


5. From the menu below, select the setting for which you want to check the paper feeding, and press [Execute].




   Menu	Setting Items
   Feed Tray	C1, C2, C3, C4, MP Tray, High Capacity Tray
   Paper Size	A4 (Vertical), Letter (Vertical)

6. After confirming the check pattern, press [OK].
