# Wireless LAN Unit Installation Procedure

#Bundled Items

#Installation Procedure

Items to Prepare

• Gloves
• Phillips (+) screwdriver

Minimum number of workers

1 person

Caution / 注意

Be sure to check the following precautions before installation. All workers must read the installing procedure together before starting work. Wear easy-to-move clothing, gloves and safety shoes and work with care for injuries etc. Work with sufficient working space. Work in the position with less load, and stop working immediately as you feel that the workload is too large. All work must be done with the power off.

important / 重要

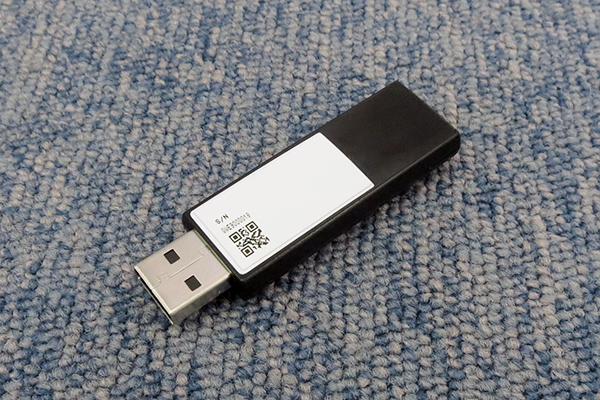

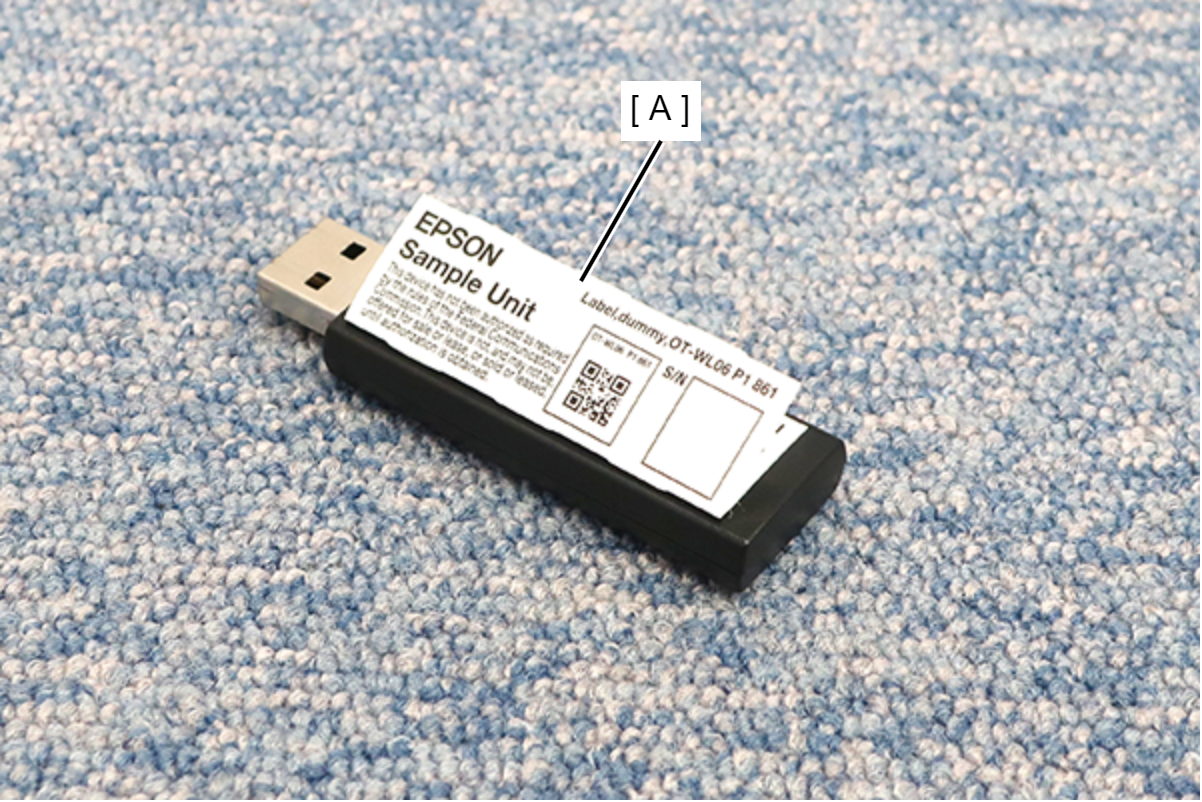

Do not remove the nameplate sheet (A) attached to the wireless LAN unit. The Nameplate sheet (A) contains the approved product mark and ID required by the Radio Law of each region, and removing the Nameplate sheet is a violation of the law.

Installation Procedure

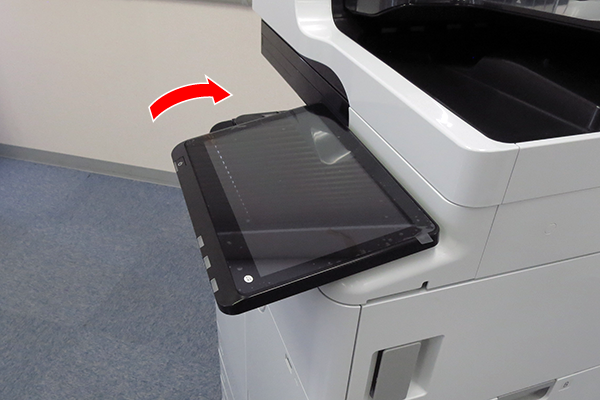

1. Tilt the Control panel.

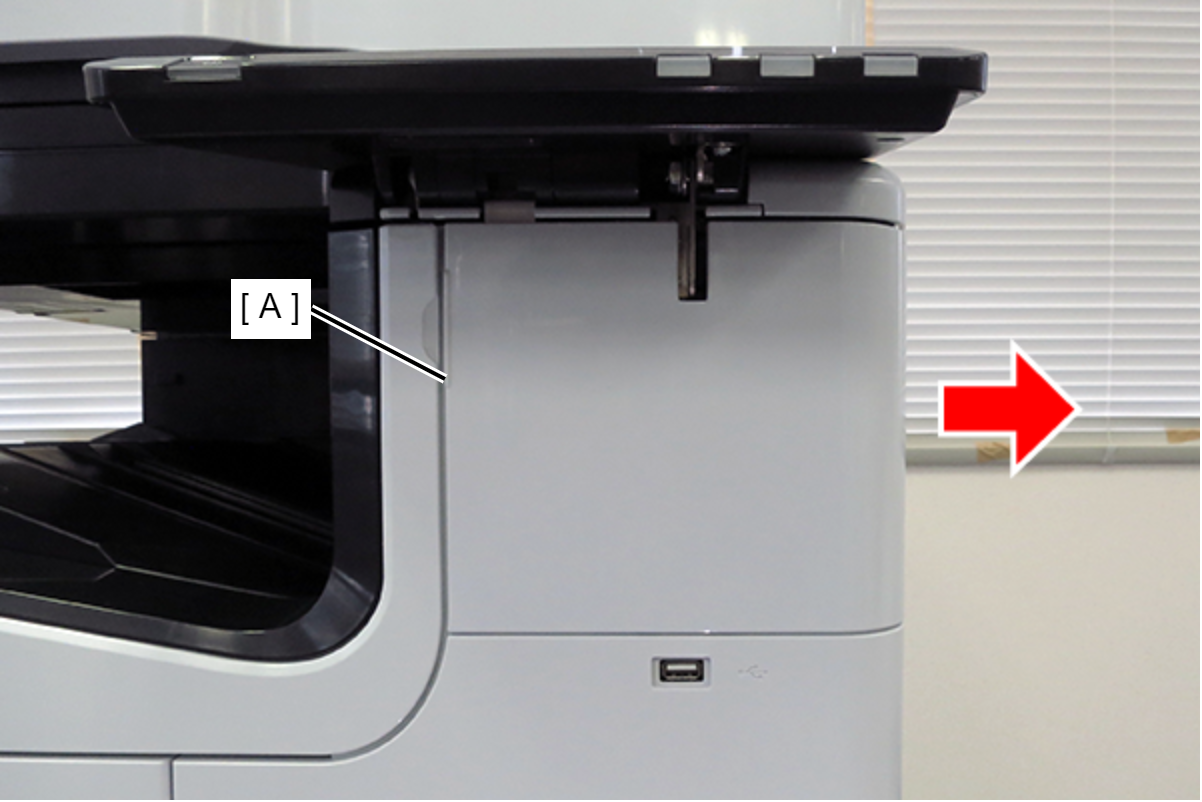

2. Remove the lower panel cover (A) by sliding it in the direction of the arrow.

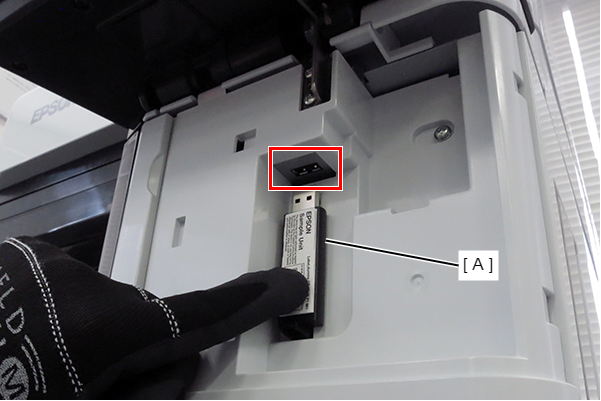

3. Attach the wireless LAN unit (A) to the Wi-Fi unit port.

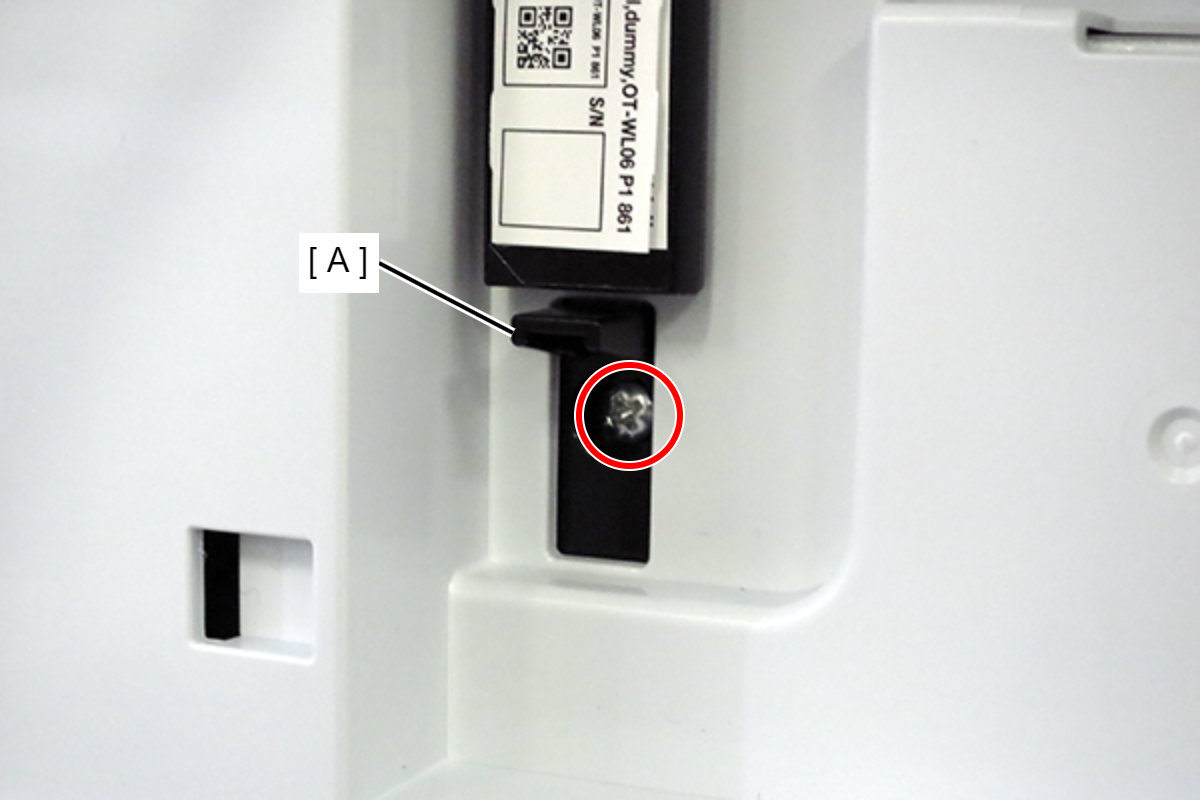

4. Remove 1 screw of the USB lock (A).

   • : 3x8D/P

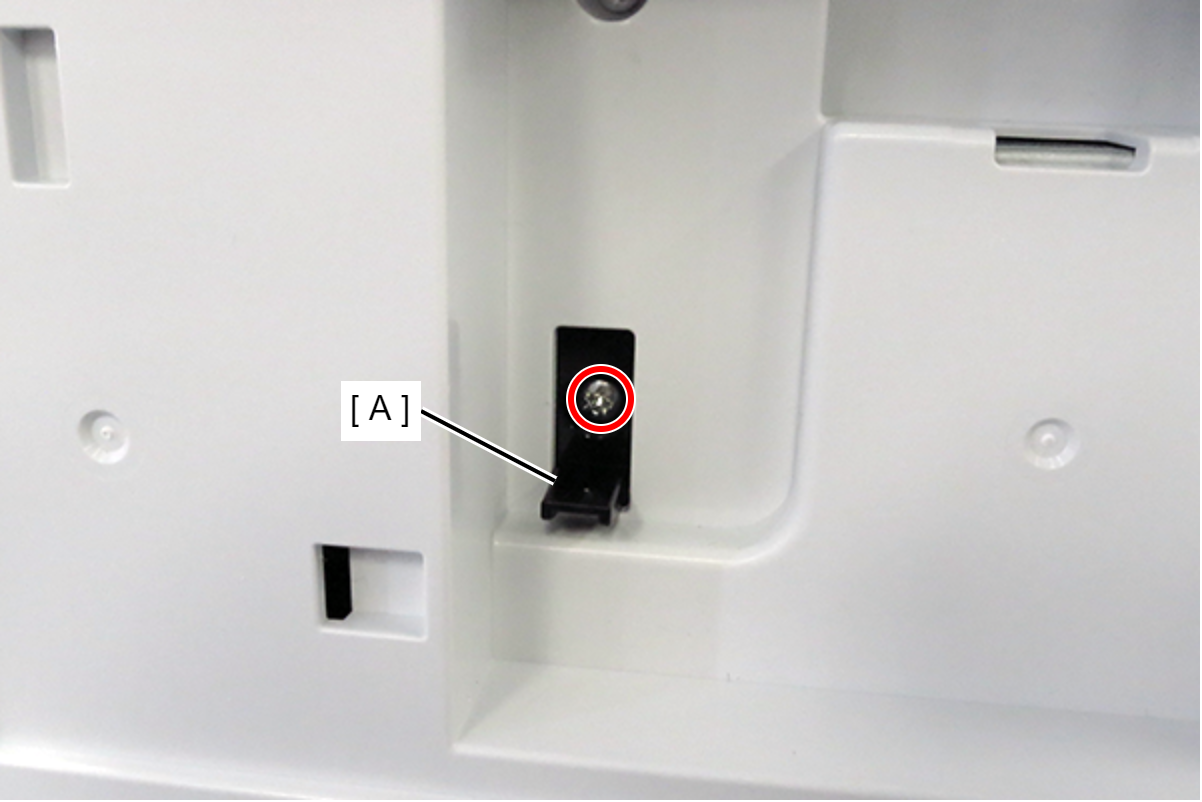

5. Raise the knob of the USB lock (A) and fix it with one screw.




   • : 3x8D/P

   Check Point / チェックポイント

   To prevent theft, be sure to implement a USB lock.

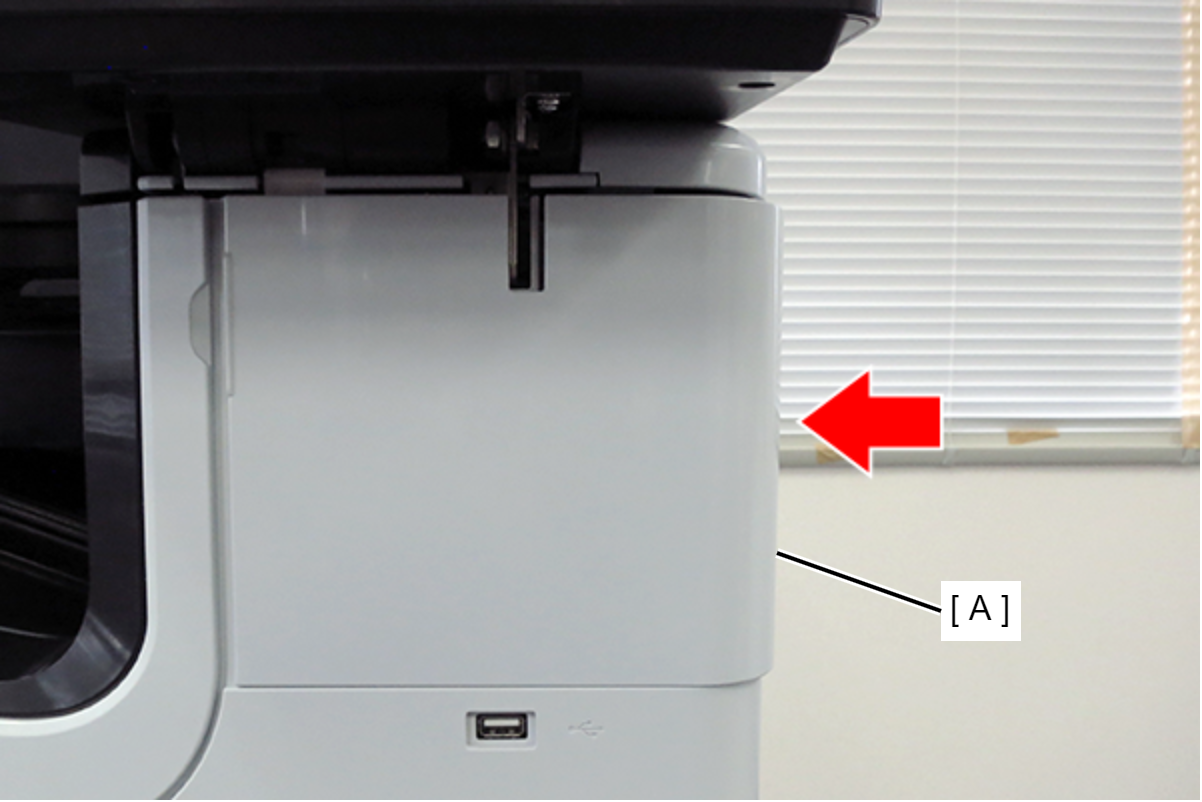

6. Attach the lower panel cover (A) by sliding it in the direction of the arrow.






   Check Point / チェックポイント

   Perform wireless LAN settings after installation. Wireless LAN Setting If you remove the wireless LAN unit after setting up the wireless LAN and start the main unit, an error will be displayed at the first startup.
